Trojan-Mek Hiab Lorry Fleet

Trojan-Mek’s HIAB lorry fleet are fully maintained and equipped, offering a range of flexible and reliable haulage solutions across the UK.  Our HIAB vehicle fleet work extensively throughout South Wales, West Wales, South West & The Midlands.

For further information please Contact Trojan-Mek to discuss your requirements around your use of HIAB haulage and transportation.




HGV Artic (Class 1)

  • STGO CAT 2 80 tonne
  • Tractor Unit with separate 45 ft Bed
  • Carries up to 45 tonne
  • Bed Dimensions – 13.5m Long x 2.6m Wide
  • 58 ft total length
  • HIAB Crane 65 tonne / metre
  • Lifts approx. 12 tonne at 3.5 metres
  • Lifts approx. 3 tonne at 14 metres
  • Closed height – 12’ 6” (top to bottom)

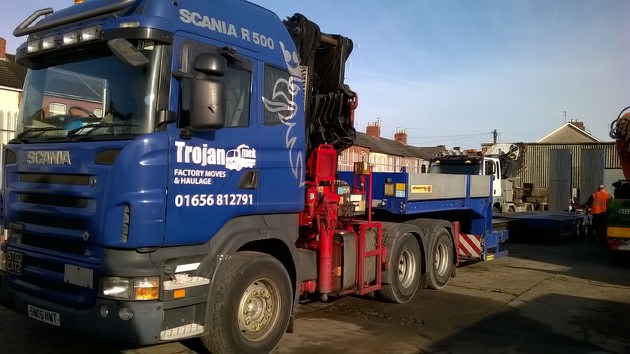

  • NEW TRAILER – 52 ft space on bed with loading ramps

HGV Rigid Lorry with HIAB

  • 26000 kgs gross
  • Vehicle dimensions – 8.5m Long (extendable 9.75m) x 2.4m wide
  • Carries 11,000 kgs on Rigid
  • HIAB 37 tonne / metre Crane with 12 metre reach
  • Width when legs fully extended 22’ 10”
  • Lift 6.5 tonne at 4.5 metres
  • Lifts 2.5 tonne at 12 metres
  • Closed vehicle height 12’ 6” (top to bottom)
  • Total Length of vehicle 40 ft

HGV Rigid Lorry with HIAB

  • Flatbed with ramps for loading plant
  • 26,000kgs gross weight
  • Bed dimensions – 8.5m long x 2.6m wide
  • Capacity – 11 tonne
  • HIAB 42 tonne / metre Crane with 10 metre reach
  • Closed height – 12’ 6” (top to bottom)
  • Lifts 8 tonne at 3.5 metres
  • Lifts 3.8 tonne at approx. 10 metres
  • Total length of vehicle – 40 ft

HGV Rigid Lorry with HIAB

  • Axle rigid body
  • 26,000kgs gross
  • Vehicle dimensions 8.5m long x  2.4m wide
  • Carries 11,000 kgs
  • HIAB 36 tonne / metre Crane with 9 metre reach
  • Width when legs fully extended 22’ 10”
  • Lifts 6.5 tonne at 4.5 metres
  • Lifts 3 ton at 9 metres
  • Closed vehicle height 12’ 6” (top to bottom)
  • Total length 40 ft
  • Loading Ramps (for drive-on plant)

7.5 ton HIAB Lorry

  • Carries 2,800 kgs
  • Maximum reach 7.5m
  • Lifts maximum of 1,500 kgs at a close distance
  • 5m long (approx. 14.5 ft)
  • 4m wide (approx. 8 ft)
  • Total vehicle length 6.5m

Curtain Side Lorry with fitted Moffett Fork Lift Truck

  • Ideal for delivering construction materials, transporting stainless steel fabrications or moving smaller machines
  • Fitted Curtainside body
  • Rear mounted Moffett Fork Lift truck – 2 tonne capacity
  • 26,000kgs gross
  • Carries 13 tonne (with Moffett)
  • Carries 16 tonne (without Moffett)

Contact Trojan-Mek for Hiab Haulage and Industrial Transport – UK Wide Service

Trojan-Mek’s fleet of HIAB vehicles can deliver a tailor-made Hiab haulage solution.

Whether you need to move one machine, or an entire production line, we have the right hiab vehicle for you.

We offer a UK wide service, although many of our customers are in the Midlands, Wales and South West Corridor covering  South Wales, West Wales, The Midlands, West Midlands, Gloucestershire, Herefordshire and The South West (Bristol, Bath and the Somerset area).

Contact Trojan-Mek today to discuss your Hiab haulage requirements.
